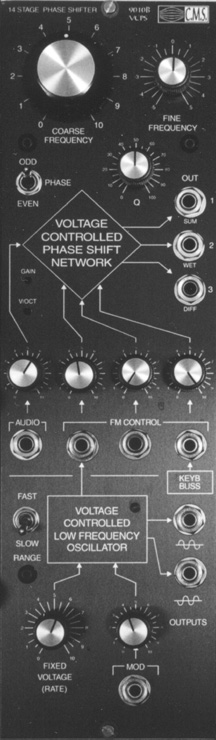

14 STAGE VOLTAGE CONTROLLED PHASE SHIFTER
MODULE 9010

FEATURES:

  • VOLTAGE CONTROLLED 14 STAGE PHASE SHIFTER CIRCUIT
  • SERVO COMPRESSION / EXPANSION CIRCUIT REDUCES NOISE
  • ACCURATE 1V/OCT CONTROL PRODUCES TUNED EFFECTS
  • CAN BE USED AS A SCALABLE COMB FILTER
  • FULL RESONANCE CONTROL INCLUDING SELF OSCILLATION
  • PHASE SWITCH FOR ADDITIONAL COMBINATIONS
  • 3 DIFFERENT TYPES OF OUTPUTS: SUM, DIFFERENCE AND WET
  • INTEGRATED VOLTAGE CONTROLLED LFO

CONSTRUCTION:

  • UTILIZES DISCRETE TRANSISTOR ALL PASS PHASE NETWORK
  • NO OPTOISOLATORS OR DELAY CHIPS USED
  • MILITARY GRADE HARDWARE, POTENTIOMETERS, JACKS, KNOBS
  • HI RESOLUTION, BRUSHED, BLACK ANODIZED FRONT PANEL
  • MATCHED, HIGH SPEED, LOW NOISE TRANSISTORS
  • SUB-MODULAR DESIGN PROVIDES EASY SERVICE, UPGRADES
  • HIGH QUALITY ELECTRONIC COMPONENTS, HAND ASSEMBLED AND TESTED

THE C.M.S. 9010 VOLTAGE CONTROLLED PHASE SHIFTER UTILIZES A DISCRETE 14 STAGE VOLTAGE CONTROLLED ALL PASS PHASE SHIFT NETWORK TO ACHIEVE DRAMATIC RESONANT PHASING EFFECTS, COMB FILTERING, HASS EFFECTS, TUNED NOISE AND CHORUSING.

MULTIPLE MODULATION INPUTS ARE AVAILABLE WITH THEIR RESPECTIVE ATTENUATORS INCLUDING AN ACCURATE 1V PER OCTAVE INPUT NORMALLED TO THE KEYBOARD BUSS. STARTLING TEXTURES ARE OBTAINED WHEN THE 9010 IS USED AS A RESONATOR THAT TRACKS THE KEYBOARD. THIS IS ALSO VERY EFFECTIVE FOR TUNED NOISE ETC. THERE IS ONE AUDIO INPUT JACK WITH ATTENUATOR. THE 3 MULTIPLE OUTPUTS COUPLED WITH THE PHASE SWITCH YIELDS NUMEROUS TONAL VARIATIONS. THE 9010 HAS A RESONANCE CONTROL AND WILL SELF OSCILLATE WHEN SET TO MAXIMUM. A SPECIAL INTEGRATED SERVO EXPANDER / COMPRESSOR CIRCUIT KEEPS NOISE AT A MINIMUM WHILE MAINTAINING DYNAMIC RANGE.

THE INTEGRATED VOLTAGE CONTROLLED LFO HAS DUAL SINE OUTPUTS 180 DEGREES OUT OF PHASE, ONE OF WHICH IS NORMALLED TO ONE OF THE MODULATION INPUTS OF THE PHASE SHIFT NETWORK. THE LFO ALSO HAS AN EXTERNAL VOLTAGE CONTROL INPUT JACK WITH IT'S RESPECTIVE ATTENUATOR. THE VOLTAGE CONTROLLED LFO IS ALSO EQUIPPED WITH A FREQUENCY RANGE SWITCH.

ELECTRICAL SPECIFICATIONS:

INPUTS:

  • FREQUENCY MODULATION: EXPONENTIAL - 1V PER OCTAVE
  • NOMINAL AUDIO INPUT: 10 V P-P, +/-10V MAXIMUM
  • AUDIO INPUT IMPEDANCE: 100K OHM
  • CONTROL INPUT IMPEDANCE: 100K OHM

OUTPUTS:

  • GAIN: UNITY - NOMINAL 10V P-P, +/-10V MAXIMUM
  • ALL IMPEDANCES: 1K OHM
  • FREQUENCY RANGE: 20Hz - 20KHz
