| TRIPLE ENVELOPE GENERATOR MODULE | ||||
FEATURES:
- 3 SEPARATE ENVELOPE GENERATORS IN ONE MODULE
- USES DISCRETE, HIGH SPEED, C.M.S. SUB-MODULES
- ADSR'S FEATURE ULTRA FAST RESPONSE - INSURES POWERFUL -
- NATURAL PERCUSSIVE ENVELOPES
- ADSR'S HAVE RANGE SWITCH FOR EXTRA HIGH SPEED MODE
- EACH ADSR HAS 2 POSITIVE AND 2 NEGATIVE OUTPUTS
- LED MONITORS ON ALL 3 GENERATOR OUTPUTS
- MANUAL START PUSH-BUTTONS ON ALL 3 GENERATORS
CONSTRUCTION:
- HIGH QUALITY ELECTRONIC COMPONENTS, HAND ASSEMBLED AND TESTED
- MILITARY GRADE HARDWARE, POTENTIOMETERS, JACKS, KNOBS
- HI RESOLUTION, BRUSHED, BLACK ANODIZED FRONT PANEL
- HAND SELECTED, HIGH SPEED. LARGE GEOMETRY TRANSISTORS
- SUB-MODULAR DESIGN PROVIDES EASY SERVICE, UPGRADES
|
THE C.M.S. 9008 TRIPLE ENVELOPE GENERATOR MODULE FEATURES HIGH SPEED FET SWITCHING CIRCUITRY TO PRODUCE EXTREMELY FAST RESPONSE TIMES TO FACILITATE PERCUSSIVE ENVELOPES FOUND IN NATURE. UNFORTUNATELY, MANY SYNTHESIZER MANUFACTURERS HAVE UNDERESTIMATED THE IMPORTANCE HIGH SPEED ENVELOPES HAVE IN DEFINING THE SOUND OF THE INSTRUMENT. AT C.M.S. EXTENSIVE HANDS ON RESEARCH HAS RESULTED IN A VERY FAST, RELIABLE ENVELOPE MODULE.
THERE ARE 2 A.D.S.R. GENERATORS AND ONE A.R. GENERATOR. EACH A.D.S.R. FEATURES A RANGE SWITCH EXTENDING THE RELEASE TIMES X2. BOTH A.D.S.R. GENERATORS ARE PROVIDED WITH INVERTED OUTPUTS. ALL GENERATORS FEATURE LED MONITORS AND MANUAL TRIGGERING PUSH-BUTTONS. THE NEWLY UPDATED AR GENERATOR FEATURES AN EXTENDED ATTACK AND RELEASE TIME RANGE.

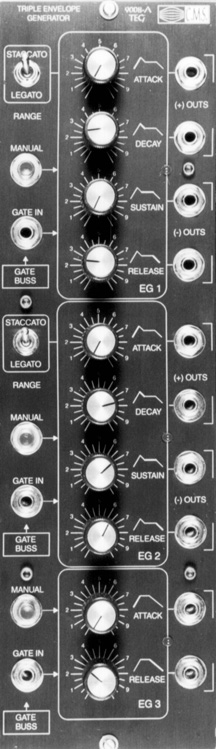

SIMPLE, ATTRACTIVE FRONT PANEL FACILITATES EASY COMPREHENSION OF FUNCTIONS. STURDY BLACK ANODIZED CONSTRUCTION, SUB-MODULAR DESIGN FOR EASY SERVICE. HIGH QUALITY COMPONENTS ASSURE DECADES OF RELIABLE SERVICE.
|
||
|
ELECTRICAL SPECIFICATIONS: INPUTS:
ADSR:
AR:
OUTPUTS:
|
||
 |
||||||
|
